Turtles: Exploring data tracking turtle movements

By gathering data on marine turtles, scientists have evidence that helps them work out where turtles migrate and the journeys they take. Scientists can then help to reduce the threats to the turtles’ survival. In this lesson we look at satellite tracking using real scientific data. Explore ways to model, interpret, represent and present data.

This lesson was created and developed in partnership with Pawsey Supercomputing Centre and Western Australian Marine Science Institution (WAMSI) Kimberley Marine Research Program.. Turtle data was sourced from the WAMSI project, which is funded by the Western Australian State Government and research partners. Data is licensed under the Creative Commons BY-NC-SA 2.5 AU licence.

Step 1

Use a quiz to stimulate interest in marine turtles and discussion of some key concepts.

Step 2

Use a suitable learning hook to engage students in analysing and interpreting real data about marine turtles. Here are some ideas:

• Where on a map of Australia would you expect to see marine turtles in the wild? Where do they go and what do they do there?
• Use a relevant resource such as Marine turtles in Australia to show images of different turtle species. Discuss what students know about turtle habitats, conservation status (vulnerable/endangered) and the cultural and social values of turtles for Aboriginal and Torres Strait Islander people. to show images of different turtle species and discuss what students know about their habitat, conservation status (vulnerable/endangered) and cultural and social values of turtles for Aboriginal and Torres Strait Islander people.
• Ask students to hand draw a picture of a turtle thinking about its features and how these features help it survive.
  Compare their drawings to an image of a turtle or draw on some inspiration from these 3D models:
  • Green sea turtle
  • Flatback sea turtle
  • Hawksbill sea turtle
  • Kemps Ridley sea turtle
  • Loggerhead sea turtle

Step 3

Discuss the work of scientists who work in conservation, surveying populations to ensure relevant data is collected, analysed and used to inform management strategies. Refer to career profiles for Sabrina Fossette of the Western Australian Department of Biodiversity, Conservation and Attractions and Blair Bentley, a postdoctoral researcher.

Step 4

Discuss satellite tracking (satellite telemetry), a form of data collection used by scientists. Provide FAQ’s sheet: Satellite Tracking for more information or teacher background. Sea turtles are migratory animals and the satellite tracking data provides a view of where they go and how long their journeys take. It gives students an opportunity to learn about GPS data (longitude and latitude) and how the two points of longitude and latitude can give us an exact location on Earth.

Image credit: USFWS Photo/Alamy Stock Photo

Step 5

Provide a simplified dataset to plot on a map with longitude and latitude grid references. Use the worksheet Northern Australia map developed by seaturtle.org. Students can infer a turtle’s direction of travel and indicate this on their map using arrows or other representation. They can also use the grid scale of 500 km to estimate the distance covered. Note that the first five map references from the table will not fit within the map grid references (115–150).

Step 6

Compare students’ manually plotted map with the same data, imported as a csv file, into an online map such as Google My Maps. Do this as a class, on a large screen, as a way to introduce them to the basics of online mapping software. By rolling over each icon, determine the date of the plotting, and infer the direction of a turtle’s journey. Use the onscreen ruler to measure the distance travelled. (The turtle starts at Exmouth in Western Australia and travels along the coast to around Thursday Island in Queensland, taking approximately 6 months a distance of over 3,500km).

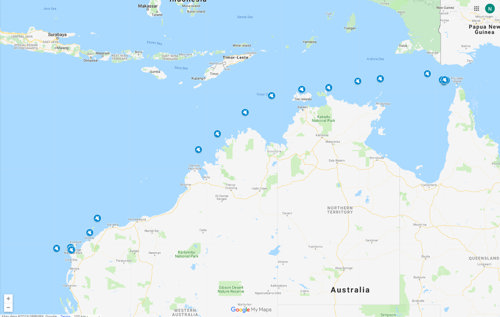

Loggerhead turtle satellite tracking data mapped on Google My Maps.

Image credit: Map © Google LLC

Step 7

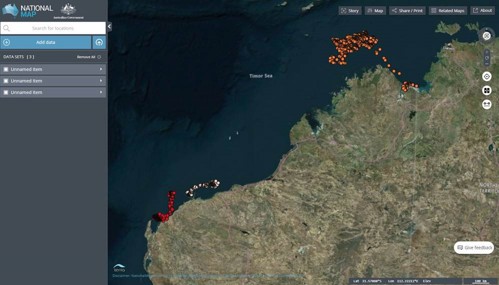

Provide students with four spreadsheets to map using online mapping software such as Google My Maps (this requires students to have their own Gmail account). Alternative online mapping software include National Map and Google Earth. National Map is a simple tool to visualise data. Google Earth allows users to render a 3D representation of Earth, viewing data from different angles.

You can import your own data which is ideal for our purpose. All you need is data with columns organised into latitiude and longititude as these are the headings that the mapping software recognises. Data is provided in two formats: csv and kml.

Note that the Ningaloo Loggerhead turtle – Nicki 76034 data displayes best in Google My Maps.

• Ningaloo Loggerhead turtle.csv – Nicki 76034
• Ningaloo Loggerhead turtle.kml – Nicki 76034
• Rosemary Island Hawksbill turtle.csv – Mayu 152612
• Rosemary Island Hawksbill turtle.kml – Mayu 152612
• Cape Domett flatback turtle.csv – Rena 134552
• Cape Domett flatback turtle.kml – Rena 134552
• Montebellos green turtle.csv – Miss McCallum 165535
• Montebellos green turtle.kml – Miss McCallum 165535

Step 8

Share students’ analysis of the different species’ migratory data. A scientist’s description has been provided for background with a website link to show how the map should look.

• Ningaloo loggerhead Nicki 76034 had two silent periods when the tag signals were lost during migration, but transmissions were good before arrival at Torres Strait.
• Rosemary Island hawksbill Mayu 152612 nested in 2015, foraged, and returned to nest again in 2018.
• Cape Domett flatback Rena 134552 foraged offshore and was a semi-nomadic animal during foraging of North Kimberley.
• Montebellos green Miss McCallum 165535 moved to Muiron Islands and foraged off Pilbara at Onslow.

Step 9

Ask students to do some further research and create an infographic about turtle conservation incorporating the data they used in their online mapping.

Digital Technology focus

• How can GPS data and satellite tracking help scientist survey a marine population?
• What is the benefit of using this type of data?
• How did you validate the data? Did any data appear incorrect or an error? How did you know it was an error?

Science focus

• What factors affect the turtle population?
• What do the migrating turtles do at different locations?

HASS focus

• What economic activity may affect a turtle’s migration pattern?

In Digital Technologies, students need to interpret data. To do this it helps to organise the data in some way; for example, in a table under relevant headings. In this spreadsheet, GPS data is provided as longitude and latitude. Students can visualise the data using online mapping software, and can look for patterns or trends. When presenting data to reveal information, students can use these to convey meaning.

This lesson integrates scientific and geographic understanding and skills.

• In science, students use their ICT capability to access information; analyse and represent data; model and interpret concepts and relationships; and communicate science ideas, processes and information.
• In HASS, students develop ICT capability when they locate, select, evaluate, communicate and share geographical information using digital technologies and they learn to use spatial technologies.

• 'Learn about Flatback turtles' quiz

Datasets (csv format)

• Turtle tracking data
• Ningaloo Loggerhead turtle.csv – Nicki 76034
• Ningaloo Loggerhead turtle.kml – Nicki 76034
• Rosemary Island Hawksbill turtle.csv – Mayu 152612
• Rosemary Island Hawksbill turtle.kml – Mayu 152612
• Cape Domett flatback turtle.csv – Rena 134552
• Cape Domett flatback turtle.kml – Rena 134552
• Montebellos green turtle.csv – Miss McCallum 165535
• Montebellos green turtle.kml – Miss McCallum 165535

3D modelling

• 3D model: Green sea turtle
• 3D model: Flatback sea turtle
• 3D model: Hawksbill sea turtle
• 3D model: Kemps Ridley sea turtle
• 3D model: Loggerhead sea turtle

Online mapping software

• Google My Maps
• National Map
